- Layer count:1 layer
- Solder mask color:White Liquid Photo Imageable Soldermask( LPI)
- Legend color:black
- Profile:CNC+V-CUT
- Thermal conductivity:1W/m-K
- Insulated layer's break down voltage:2.5KV
- Application area:LED lighting
- Place of Origin:CN;GUA
- Brand Name:OEM
- Model Number:FMPCB0057
- Base Material:FR-4/cem-1/cem-3/FR-1
- Copper Thickness:0.5-3OZ
- Board Thickness:0.008 ~0.24.(0.20mm~6.0mm)
- Min. Hole Size:6mil (0.15mm)
- Min. Line Width:3-4 mil
- Min. Line Spacing:0.076-0.10mm
- Surface Finishing:HASL/OSP/ENIG/

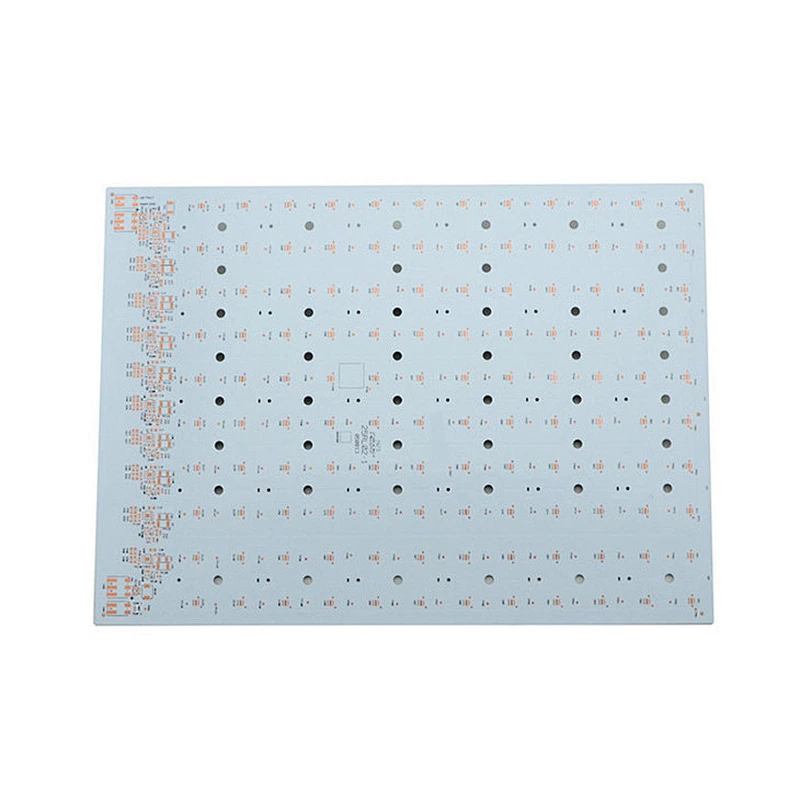

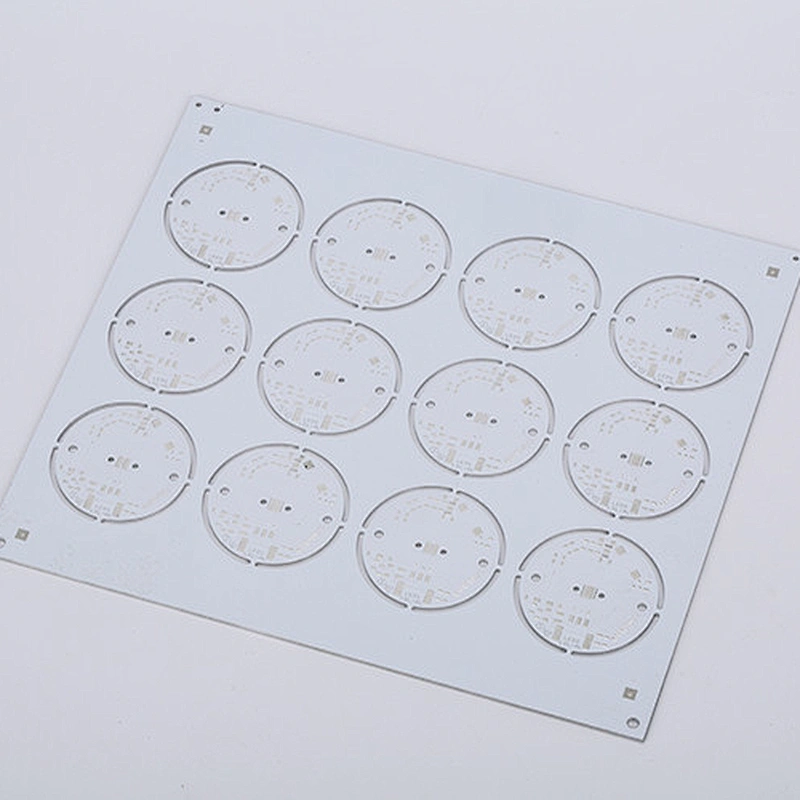

Thermal conductivity 1W/m-K wholesale export led aluminum pcb circuit board
Product features
1. High thermal conductivity
2. have excellent flame retardant
3. high mechanical strength
4. dimensional stability
5. very good heat sink
6. electromagnetic shielding,etc.
Specification
| Details for Aluminum Core PCB ( Aluminium Base PCB for LED) PCB Details | |
| Part name: | Aluminum PCB circuit-FMPCB0057 |
| Base material: | Aluminum base laminate |
| Layer count: | 1 layer |
| Copper thickness: | 1oz or 35um |
| Finished board thickness: | 1.6mm |
| Solder mask color: | White Liquid Photo Imageable Soldermask( LPI) |
| Legend color: | BLACK |
| Surface finished: | OSP |
| Profile: | CNC+V-CUT |
| Thermal conductivity: | 1W/m-K |
| Insulated layer's break down voltage | ≥2.5KV |
| Application area: | LED lighting, Power supply module,sound box,and acoustics shielding system etc. |

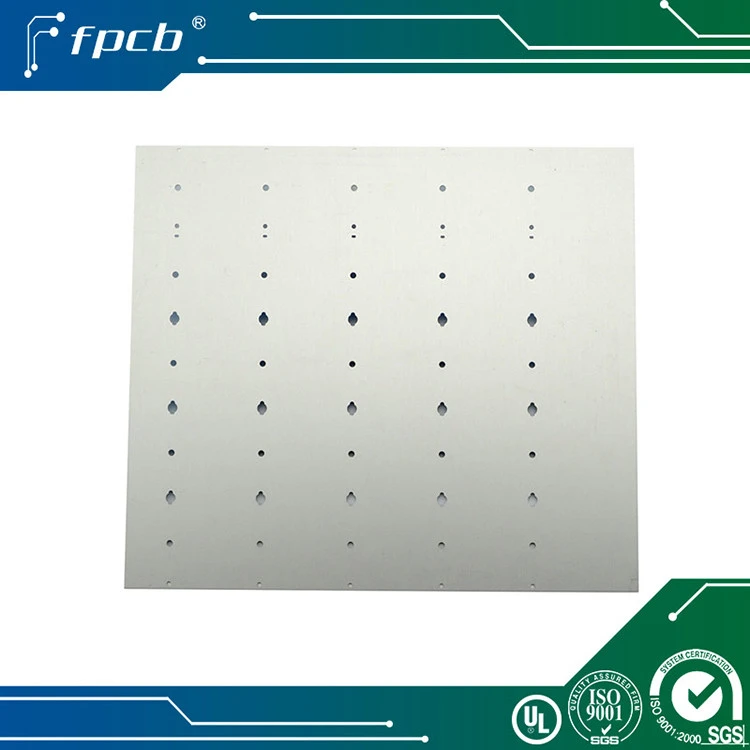

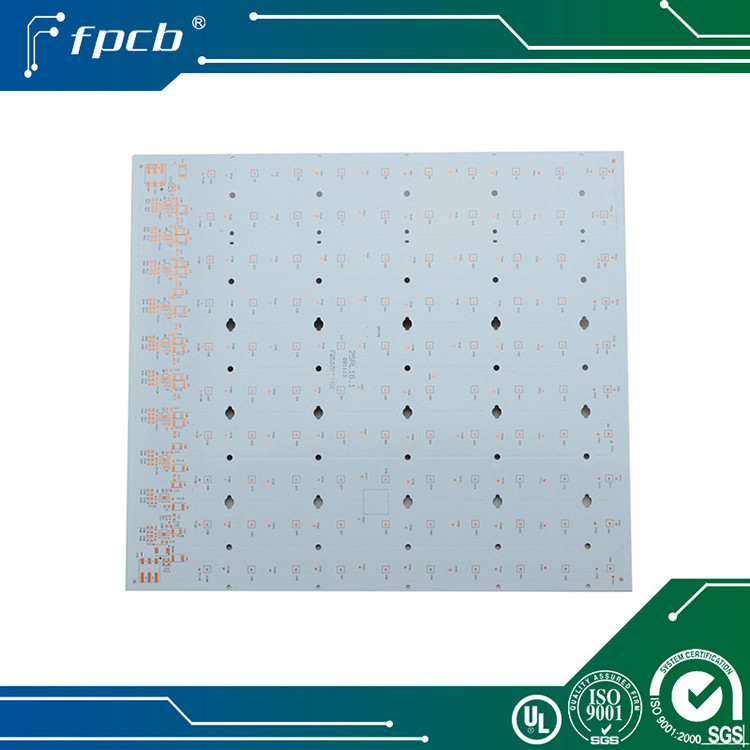

Product picture
More Details
| MCPCB Manufacturing Capability | |
| Raw Materials | aluminum base, copper base, iron base laminate etc. |
| Max. Board Size | 1500mm*560mm(59in*22in) |
| Min. line width/space | 4mil/4mil (0.1mm/0.1mm) |
| Min. Hole size | 12mil (0.3mm) |
| Finished board thickness | 0.3~5mm |
| Copper foil thickness | 35um~240um (1OZ~7OZ) |
| Remain thickness tolerance | (+/-)0.1mm |
| Hole position tolerance | (+/-)0.076mm |
| Profile tolerance | routing outline tolerance:+/-0.13mm; punching outline tolerance:+/-0.1mm |
| Surface finished | Lead free HASL, immersion gold (ENIG), immersion silver, OSP etc. |
| Production capacity | 40,000 s.q.m/month |
Finest Printed Circuit Board Limited was established in 2003, based in Shenzhen, China, specialized in the production of printed circuit boards. As a long history China based PCB manufacturer, Finest manufactures different types of PCB, including single sided PCB, double sided PCB and multi-layer P C B, up to 22 layers. Our diverse products of MCPCB, CEM-1 PCB, CEM-3 PCB, FR-4 P C B are widely used for LED Lighting, power supply, metering,communication, consumer electronics, automobile electronics and other industries. We offers a wide rage of services from rapid PCB prototypes to large volume PCB manufacturing.
