- Place of Origin:CN;GUA
- Brand Name:OEM
- Model Number:SB888K
- Base Material:FR4,CEM-1,CEM-3,Alu...
- Copper Thickness:1~3 OZ
- Board Thickness:1.6mm
- Min. Hole Size:0.2mm
- Min. Line Width:3mil
- Min. Line Spacing:4mil
- Surface Finishing:HASL
- Certificate:ISO/UL/TS16949/RoHS/TS1694
- Number of Layer:1-22 Layers

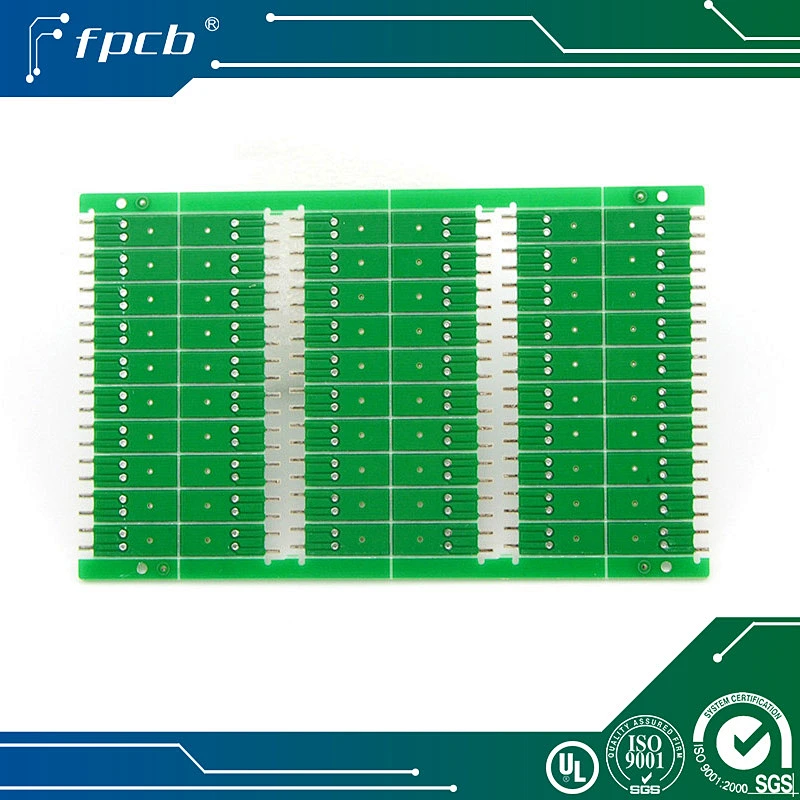

- Product name:Printed Circuit Board

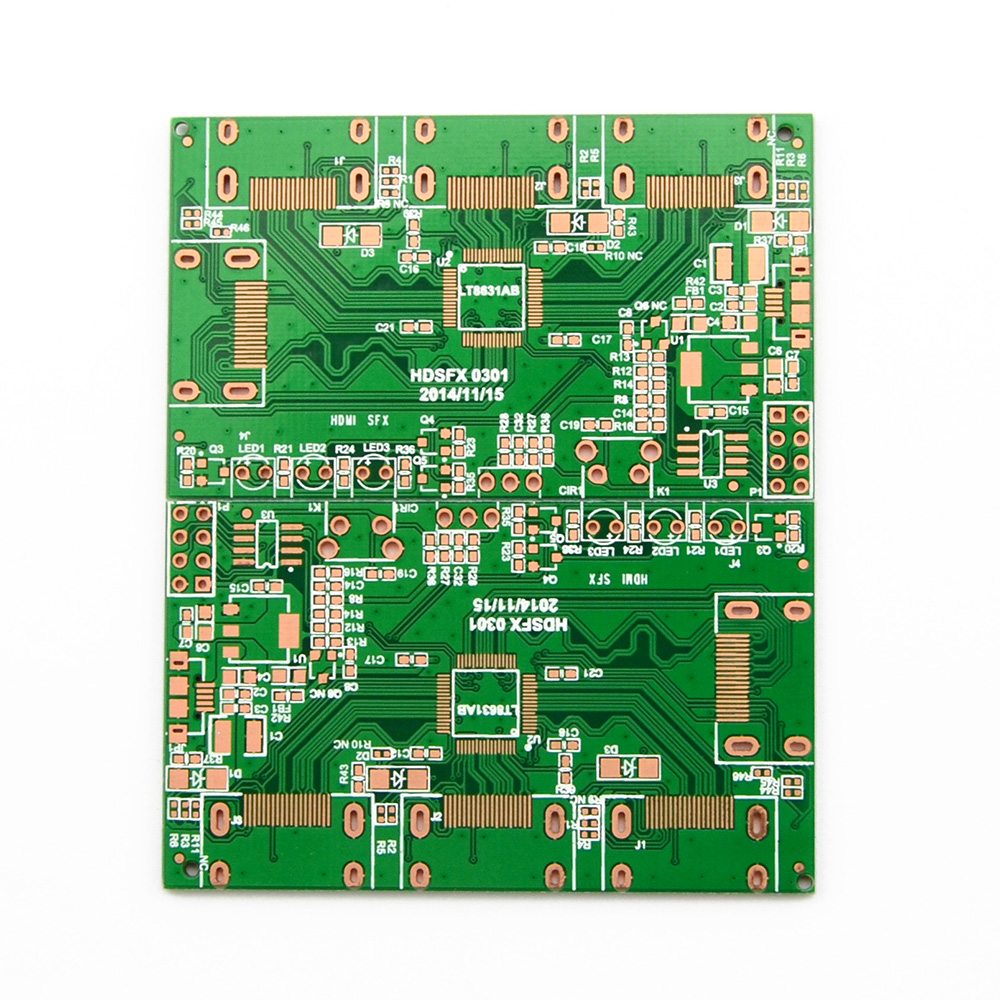

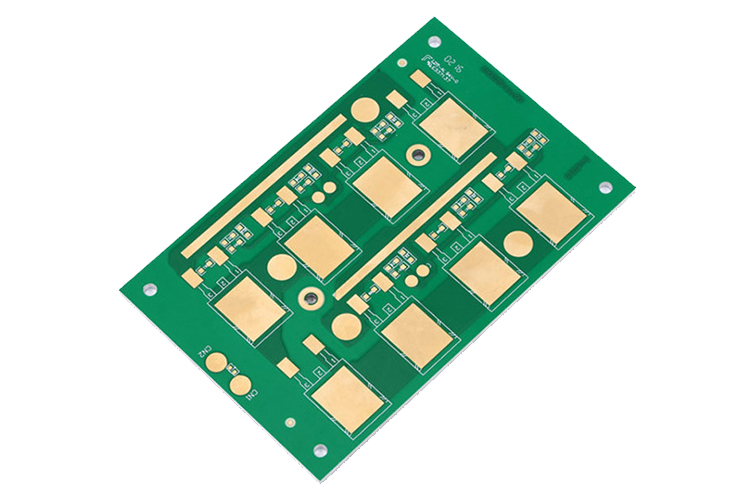

Product Description
| pcb for eletronic product(lights;players...) | |
| Base material: | Fr4;Alu;CEM-3;CEM-1... |
| Layer count: | 1~22layer |
| Copper thickness: | 1oz or 35um |
| Finished board thickness: | 1.6mm-3.2mm |
| Solder mask color: | Green Liquid Photo Imageable Soldermask( LPI) |
| Legend color: | white |
| Surface finished: | Immersion Gold;Immersion sliver;HASL;OSP... |
| Profile: | CNC+V-CUT |
| Application area: | electronic product |
CPCB Manufacturing Capability
| Product Type | Al Clad PCB 1 /2 layer |
| Maximum Panel size | 1500mm*560mm(59in*22in) |
| Copper thickness | 0.5oz, 1oz, 2oz, 3oz |
| Substrate Core Thickness | 0.4mm,0.6mm,0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,3.0mm,3.2 mm |
| Finished Board Thickness | 0.4mm To 5.0mm |
| Copper foil thickness | 35um~240um (1OZ~7OZ) |
| Min. line width/space | 4mil/4mil (0.1mm/0.1mm) |
| Thickness Tolerance | +/- 10% |
| Min. Finish hole size | 0.2mm |
| Hole position tolerance | (+/-)0.076mm |
| Max. working voltage | 2.5k VDC(0.075mm Dielectric) 3.75k VDC(0.15mm Dielectric) |
| Aluminum Machining | Drilling,Tapping,Milling, Routing, Die-Punching, break-off tab available |
| Profile tolerance | Routing outline tolerance:+/-0.13mm; Punching outline tolerance:+/-0.1mm |
| Surface Finishing | HASL, HASLLeadfree, Immersion gold(silver,Tin), OSP |
| Solder mask color | White, LED light special White, Black, MATT Black, others Available |
| Legend color | Black, White, others Available |
| Test | Flying probe E-test; Fixture E-test; |
| Rosh | YES |
| Certification | SGS;ISO9001;ISO14001;UL(E337137);ROHS;TS16949 |
Packing Details: Vacuum package + Carton box + Wooden pallet / according to customer requirements
Delivery time: can be delivered within 3-7 days.

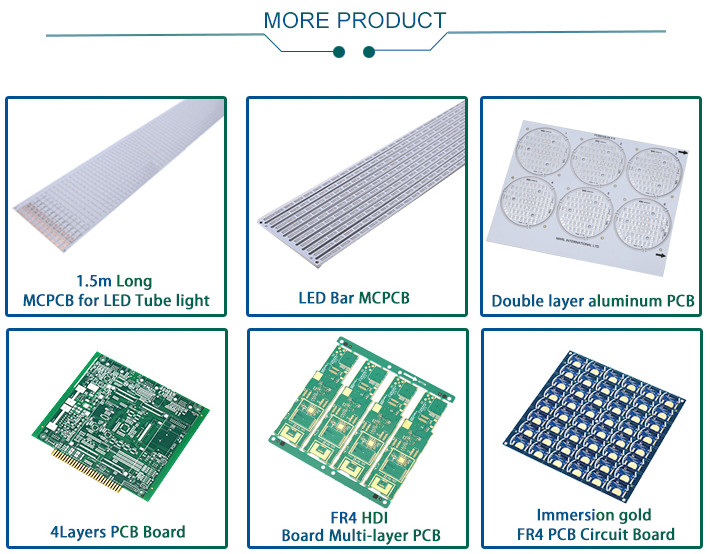

Finest Printed Circuit Board Limited was established in 2003, based in Shenzhen, China. specialized in the production of printed circuit boards. As a long history China based PCB manufacturer, Finest manufactures different types of PCB, including single sided PCB, double sided PCB and multi-layer P C B, up to 22 layers. Our diverse products of MCPCB, CEM-1 PCB, CEM-3 PCB, FR-4 P C B are widely used for LED Lighting, power supply, metering,communication, consumer electronics, automobile electronics and other industries. We offers a wide rage of services from rapid PCB prototypes to large volume PCB manufacturing and PCB assembly for led light.
Quote for PCB project:
-Gerber file, drawing file or Samples
-Technical requirement
Quote Requirements for PCB and PCBA
- PCB Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if available.
- Testing program for PCB Assembly
